Weldments that Require Machining

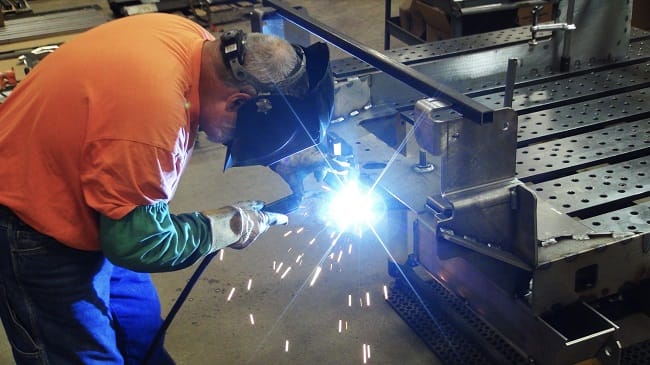

Welder attaching components to a final assembly

An industrial equipment manufacturer wanted to relocate some of its current production from another vendor. They chose to work with Wisconsin Metal Parts because we could handle the fabrication, CNC machining and welding operations needed to produce a wide variety of weldments and machined components for their product.

To learn more about this project, including tolerances and inspection processes, please contact us today or see the table below.

Details And Specifications
Product Description
Frame Support Arm
Capabilities Applied/Processes
Primary: Fabrication & CNC Machining
Secondary: Welding & Assembly
Equipment Used to Manufacture Part
CNC Mills, CNC Turning, Fiber Laser Cutting, Welding
Overall Part Dimensions
18 x 45 x 50”
Tightest Tolerances
Material Used
A-36 Steel
In Process Testing/Inspection Performed
CMM & Faro Arm
Estimated Part Weight
75 lbs.
Industry for Use
Industrial Equipment Manufacturing
60-70 yearly
Delivery Location
Midwest, USA
Standards Met
Customer supplied print, 2D CAD Drawing
MIL specifications
ASME Y14.5M-1994
Product Name
Frame Support Arm
