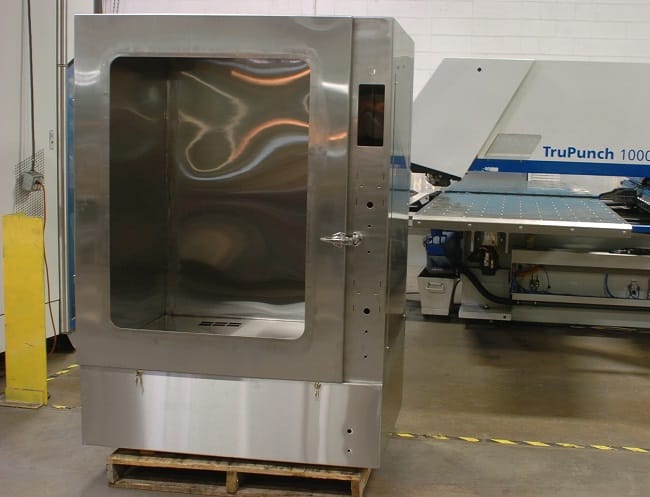

This stainless steel cabinet was designed and prototyped for the medical industry. Our customer came to us with a basic concept and we created models and individual part prints to work from.
To learn more about this project, including tolerances and inspection processes, please contact us today or see the table below.
Details And Specifications
Product Description
Stainless Steel Medical Cabinet Prototype
Capabilities Applied/Processes
Primary:
Laser Cutting, CNC Punching
Secondary:
Assembly, Hardware Insertion, Welding, Surface Finishing
Laser Cutting, CNC Punching
Secondary:
Assembly, Hardware Insertion, Welding, Surface Finishing
Equipment Used to Manufacture Part
Trumpf 5030 Fiber Laser, Trumpf TruPunch 1000, Trumpf TruBend 5085, welding, surface finish equipment.
Overall Part Dimensions
Length: 60.00”
Width: 60.00”
Height: 75.00”
Width: 60.00”
Height: 75.00”
Tightest Tolerances
±.015"
Material Used
Stainless Steel
Max Material Finish
63Ra
In Process Testing/Inspection Performed
First Article, Functional Testing
Estimated Part Weight
200 lbs.
Industry for Use
Medical Diagnostic
Volume
1
Delivery Location
Midwest, USA
Standards Met
Material certifications
Product Name
Medical Diagnostic Cabinet
