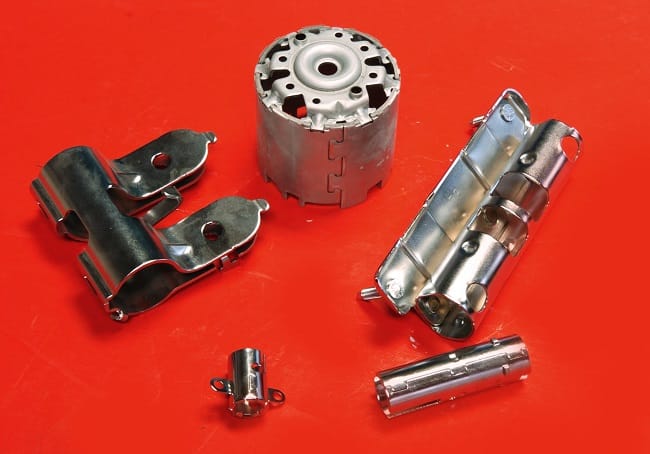

Here is a variety of pre-production prototypes that were rolled up and/or staked in the tool. These all became tooled up as progressive production dies after testing was completed.
To learn more about this project, including tolerances and inspection processes, please contact us today or see the table below.
Details And Specifications
Product Description
Rolled Up Stamping Prototypes
Capabilities Applied/Processes
Primary:
Prototype Stamping
Tool & Die Making
Rolling parts in-die
In-die staking and insertion
Prototype Stamping
Tool & Die Making
Rolling parts in-die
In-die staking and insertion
Equipment Used to Manufacture Part
Minster 100 ton press
Tightest Tolerances
Size : ±.001”
Material Used
1008/1010
Max Material Finish
32Ra
In Process Testing/Inspection Performed
Prototype, First Article
Estimated Part Weight
<1 lb.
Industry for Use
Automotive
Volume
100-500
Delivery Location
Midwest, USA
Standards Met
Customer supplied print, 2D CAD Drawing, 3D model
MIL specifications
Material certifications
MIL specifications
Material certifications
Product Name
Rolled Up Stampings
