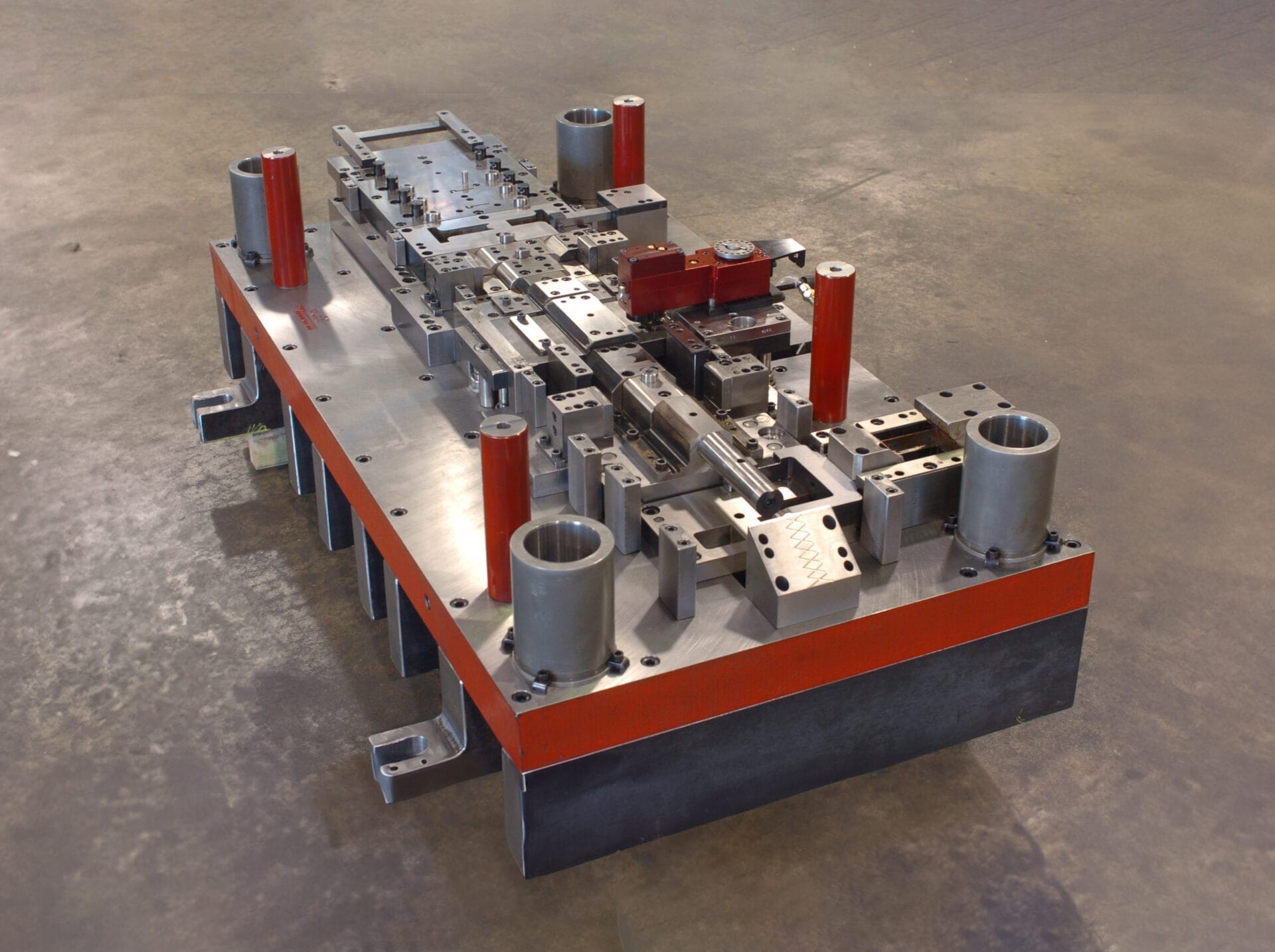

Our customer came to us looking for ideas to hit their target pricing on a stamped Flange. After review with their engineering team, we designed and built this progressive stamping tool with an in-die tapping unit to add a threaded hole during the run. With this tapping unit, Wisconsin Metal Parts eliminated a secondary operation allowing them to save $.25 on their overall part cost. The tapping unit added an additional $12,000 to the die build. With their volumes near 100,000 pieces annually this was a good ROI for our customer and quickly paid for itself.
Details And Specifications
Product Description
Safety Unit Bracket
Capabilities Applied/Processes
Primary:
Progressive stamping tool
Secondary:
In-Die tapping
CNC Form Grinding
Progressive stamping tool
Secondary:
In-Die tapping
CNC Form Grinding
Equipment Used to Manufacture Part
Solidworks, WEDM, Jig grinding, CNC form grinding, CNC machines
Overall Part Dimensions
Length: 26"
Width: 42"
Width: 42"
Tightest Tolerances
±.0005”
Material Used
A-2, D-2, M-2, CPM, 4140, Carbon Steel
Max Material Finish
125Ra
In Process Testing/Inspection Performed
First Article, CMM, Inspection Gage, 500 piece runoff
Lead Time
13 Weeks
Volume
Tooling designed to run 800,000 hits
Delivery Location
Midwest, USA
Standards Met
Customer supplied print
2D CAD Drawing
Customer die standards
First Article approval
Runoff
2D CAD Drawing
Customer die standards
First Article approval
Runoff
Product Name
Progressive Die with In-Die Tapping
