Metal Stamping and CNC Machining

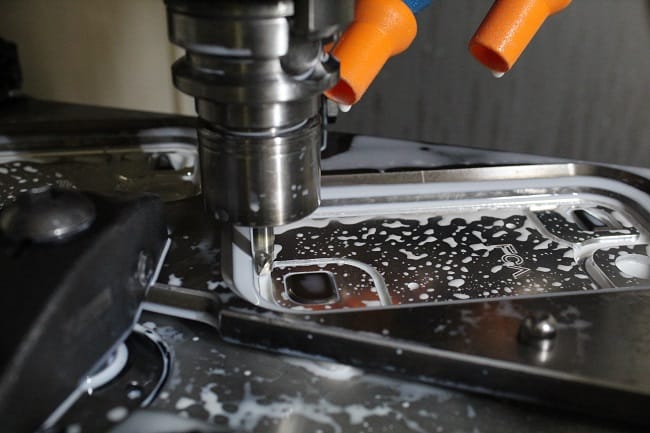

CNC milling of a metal stamped part

Wisconsin Metal Parts was presented with a stamped part that needed secondary machining on an O-ring groove track. This project began with months of prototyping until our customer was able to finalize the design. We then built stamping tools and milling fixtures in our tool room. The parts required some tight tolerances and surface finishes. We completed a Level 3 PPAP and have been running production, approaching a 500,000 pieces-per-year mark.

This project prompted WMP to add new high-speed milling equipment to keep up with pricing and volume demands. Our ability to stamp and machine in-house gives us the control needed to produce these challenging parts at a very competitive rate. This project also involves washing parts after machining, drying them and packaging for shipping worldwide.

Details And Specifications
Product Description
Aluminum Heat Plate
Capabilities Applied/Processes
Primary: Stamping
Secondary: CNC Milling
Equipment Used to Manufacture Part
200-Ton Press
Vertical CNC
Heated Washing Equipment
Overall Part Dimensions
.25 x 4.0 x 6.0”
Tightest Tolerances
Material Used
Max Material Finish
In Process Testing/Inspection Performed
Estimated Part Weight
Industry for Use
500,000 annually
Delivery Location
