Understanding Common Welding Processes: MIG, TIG, Spot, Laser, and Robotic Welding
In a modern fabrication environment, welding is not a one-size-fits-all operation. The process selected has a direct impact on part quality, cost, lead time, and finishing requirements. Understanding the differences between common welding methods helps clarify why certain processes are specified and where their limitations lie.
This overview explains how each method works, when it’s typically used, and the material and technical constraints that influence process selection.
MIG Welding
MIG welding is one of the most widely used processes in fabrication due to its speed and relative ease of use. It uses a continuously fed wire electrode and a shielding gas to protect the weld pool from contamination.
MIG welding is often the default choice for production environments where efficiency matters. It performs well on mild steel, stainless steel, and aluminum, particularly in medium to thicker material ranges. Because the wire feed is continuous, welders can maintain longer runs without stopping, making it ideal for structural components, enclosures, and general fabrication work.
However, MIG welding is less precise than other methods. It produces more spatter, which may require secondary cleanup, and it can struggle with very thin materials where heat control is critical. While it can be automated effectively, achieving high cosmetic quality often requires grinding to finish the component.
MIG is typically chosen when speed and cost efficiency outweigh the need for fine control or appearance.
TIG Welding
TIG welding is known for precision and cleanliness. It uses a non-consumable tungsten electrode and often requires a separate filler rod, giving the operator a high degree of control over the weld.
This process works best when appearance and weld integrity are critical. It is commonly used on thin materials, intricate assemblies, and components requiring high-quality finishes, such as visible stainless steel parts or aerospace and medical components.
The tradeoff is speed and skill requirement. TIG welding is significantly slower than MIG and demands a higher level of operator expertise. The welder needs to use both hands to control both the torch and the filler material, as well as manage temperature control with a foot pedal. Additionally, the welder needs a higher level of understanding of material behavior, joint preparation and shielding gas coverage, as TIG welding is much less forgiving than other methods.
TIG is the preferred option when weld quality, aesthetics, and precision are more important than throughput.
Spot Welding
Spot welding operates on a completely different principle. Instead of using a filler material, it joins sheets of metal by applying pressure and passing an electrical current through the material, generating heat at the contact point. Spot welding works best on thin sheet metals, typically in overlapping configurations. It does not produce a continuous seam, but rather a series of discrete welds.
This process is extremely fast and highly repeatable, making it ideal for high-volume production of sheet metal assemblies. It is widely used in industries like automotive manufacturing and in the production of enclosures, brackets, and cabinets.
Material thickness and conductivity often determine if a part can be spot welded. Very thick materials or highly conductive metals like aluminum can be challenging, requiring specialized equipment.
Spot welding is chosen when speed, repeatability, and low per-weld cost are priorities, especially for sheet metal assemblies.

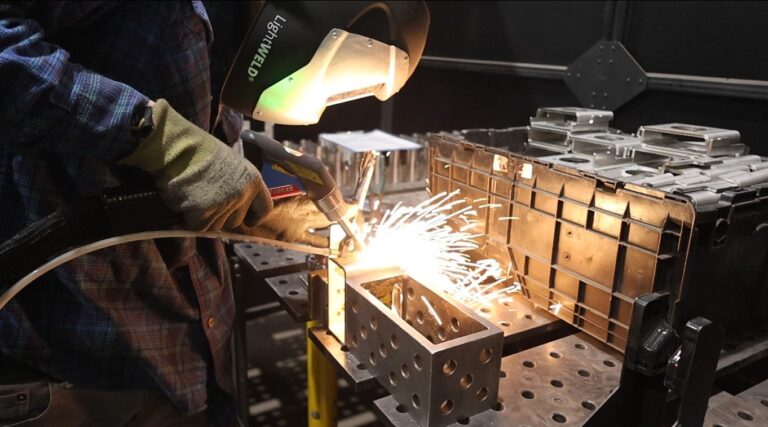

Laser Welding
Laser welding is a more advanced process in modern fabrication shops. It uses a focused laser beam to create a highly concentrated heat source, allowing for precise welds with minimal distortion. This lack of distortion makes it ideal for thin materials like stainless steel and aluminum applications where final weld appearance is important.
Laser welding can offer higher speeds than TIG while maintaining a level of precision closer to it. While laser welding isn’t a huge jump in manual difficulty for the welder, it requires strict joint preparation and parameter setup requirements. Fit-up must be precise, as gaps between parts can lead to inconsistent welds. Reflective materials like aluminum and copper can also pose challenges without the right system configuration.
Laser welding is typically selected for high-precision, high-efficiency applications where consistency and minimal finishing are critical.
Robotic Welding
Robotic welding is not a distinct welding process, but rather an automated tool that can be configured for MIG, TIG, or even laser welding. In most fabrication environments, robotic welding is commonly paired with MIG welding due to its speed and adaptability, but most robots can be set up for any style of welding.
The primary advantage of robotic welding is consistency. Once a program is developed and dialed in, a robot can produce identical welds across thousands of parts with minimal variation. This makes it highly valuable for high-volume production runs where repeatability and throughput are critical. These systems also improve efficiency by reducing cycle times, limiting labor and minimizing downtime between welds.
However, upfront programming and fixturing requirements for robotic welding are significant. Parts must be designed for repeatable positioning, and tolerances need to be tightly controlled to ensure the robot can consistently hit the weld joint. Because of this, robotic welding requires sufficient production volume to justify the setup cost. Low-volume jobs, highly complex geometries, or parts with inconsistent fit-up are often better handled by manual welding.
In practice, robotic and manual welding often complement each other within the same shop. Robots handle long production runs and repetitive welds, while skilled welders focus on prototypes, custom work, and jobs requiring adaptability.
Choosing the Right Process
Selecting the appropriate welding method depends on a combination of factors: material type and thickness, part geometry, finish requirements, production speed, and ideal volumes. We put together an easy chart to reference with these factors in mind:
Final Considerations
Understanding these processes at a practical level helps bridge the gap between design, purchasing, and production. No single process is better than another, each one serves a role within a well-equipped fabrication department. For someone sourcing parts or evaluating a supplier, knowing why a shop recommends a specific welding method can provide insight into cost drivers, lead times, and expected quality. In a shop environment, the best fabrication teams select the right tool for each job rather than relying on a single approach. As fabrication technology continues to evolve with advancements in laser and robotic welding, having a foundational understanding of these methods becomes increasingly valuable for anyone involved in the manufacturing process.
