In modern metal fabrication, the engineering phase often determines how quickly a project moves into production and whether unexpected costs arise. For customers developing complex fabricated assemblies like those in industries such as data centers, automation, power generation, and medical equipment, the quality and completeness of project information dictates engineering timelines, manufacturability, and overall project success.
Engineering departments are often the primary bottleneck in manufacturing because they must resolve design clarifications to avoid manufacturability issues. Depending on what resources they get upon the start of a project, this can drag out into weeks or months, squeezing already-tight timelines. When communication between customers and fabrication engineers is clear and timely, these issues can be resolved quickly without delaying production schedules.
At its core, Fabrication engineering is the process of translating design intent into manufacturable parts using processes such as laser cutting, CNC machining, forming, welding, and assembly. When information is missing or inconsistent, engineering teams must spend additional time verifying feasibility or redesigning components which delays schedules and increases costs.
This article outlines the most common issues fabrication engineers encounter when launching projects and explains how customers can prepare their designs to streamline the engineering process, reduce risk, and accelerate production.
Providing Complete 2D and 3D Models
One of the most frequent challenges in fabrication engineering is receiving incomplete design data, particularly when neither 2D drawings nor 3D CAD models are supplied.
Both formats serve different but complementary purposes in manufacturing:
3D CAD models allow engineers to analyze geometry, manufacturability, and assembly relationships.

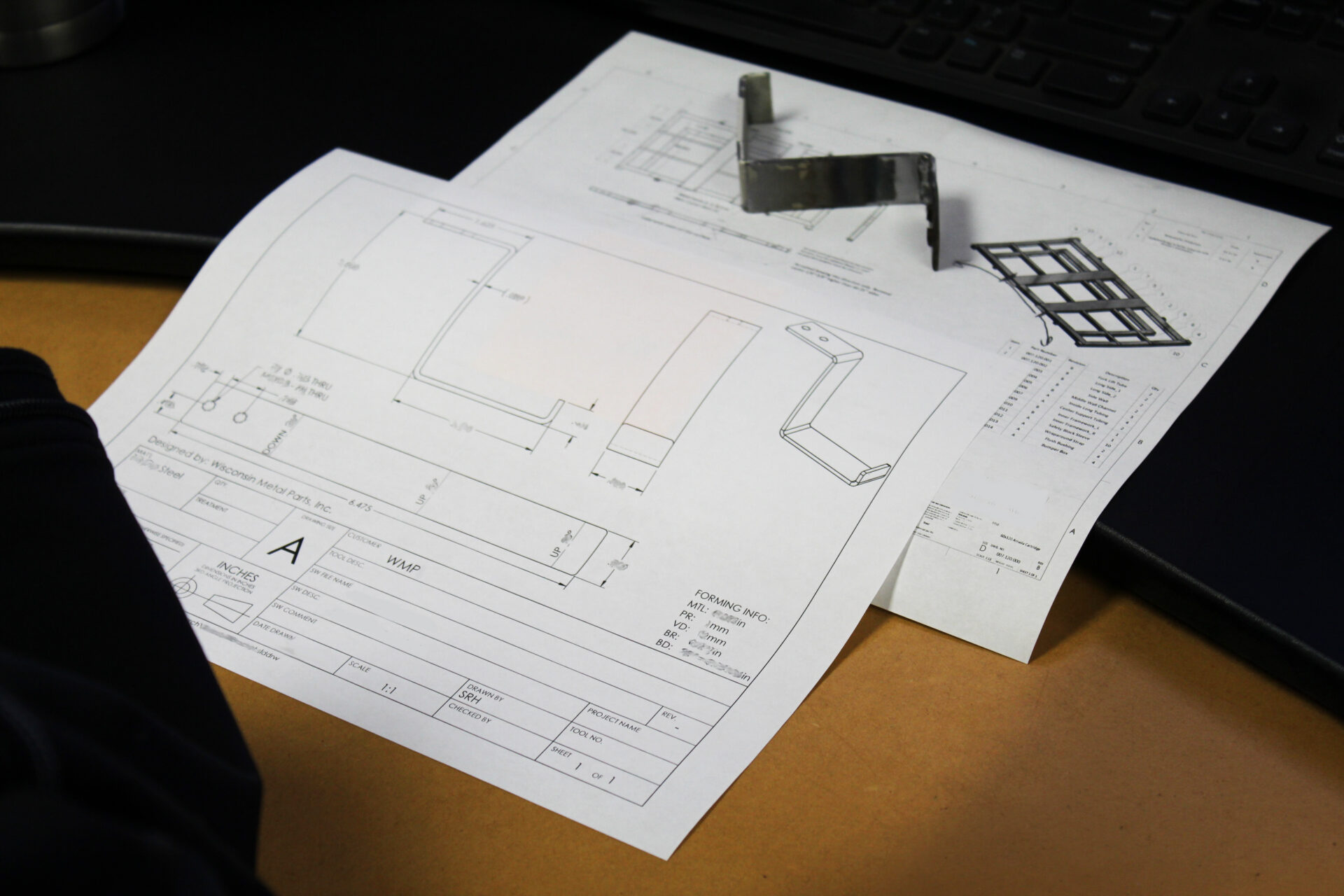

2D drawings communicate critical manufacturing requirements such as tolerances, finishes, weld symbols, and inspection notes.
Without these, engineering teams must reverse-engineer the design intent or recreate the model entirely. This introduces delays and can lead to interpretation errors.
Why are both models so important? For example, in sheet metal fabrication, a 3D model helps determine bend allowances, flat patterns, and collision risks within assemblies. The 2D drawing then defines which dimensions are critical and must be controlled during production. Both are necessary to manufacture an accurate part.
In larger fabricated assemblies such as enclosures or frames, lack of CAD data can prevent engineers from evaluating fit-up conditions between parts or verifying weld access, mounting locations, or cable routing paths. This creates additional engineering work before production can even begin, as they must add in those missing critical features.
From a fabrication engineering standpoint, providing both the native CAD model and a fully defined print is the fastest path to accurate quoting and production readiness.
Specifying Materials Clearly
Another recurring issue in metal fabrication projects is incomplete or ambiguous material specifications.
Metal fabrication processes depend heavily on material type, grade, and condition. The difference between materials that appear similar, like stainless steels, can significantly affect formability, weldability, structural strength and surface finish, as well as costs and lead times. Material selection also determines which manufacturing processes are feasible. For example, certain reflective metals can require specialized laser systems, while material thickness and composition influence achievable tolerances and distortion during cutting.
In fabrication engineering workflows, engineers need the following material information upfront:
- Material type and grade
- Thickness or gauge
- Finish or coating requirements
- Any compliance or regulatory standards
Without this information, engineers must pause the project to clarify requirements or make assumptions that may later require redesigning.
For fabricated assemblies used in regulated industries such as defense or medical equipment, correct material callouts are even more critical due to traceability and certification requirements. Ensuring that this information is included in the project package is critical.
Specifying Tolerances That Reflect Real Manufacturing Processes
Tolerance selection is a common issue in fabrication engineering. Some drawings do not specify tolerances, while others apply them to nearly every dimension. Both situations slow down the engineering process and can lead to unnecessary cost or clarification before production can begin.
When deciding which part features need tolerancing, it is important to consider that different fabrication processes naturally produce different levels of precision. For example, laser cutting typically holds tolerances of about ±0.1–0.25 mm depending on material thickness and cutting conditions. In contrast, sheet metal forming generally introduces more variation due to material springback and tooling differences, with angular tolerances often around ±1° and dimensional variation near bends. Ensuring that tolerances reflect realistic process capabilities moves the project through engineering and production significantly faster.
When drawings specify unnecessarily tight tolerances across all features, engineering teams must evaluate whether additional operations, tooling, or inspection processes are required, which can lead to unforeseen costs. Conversely, when tolerances are not specified at all, engineers must determine whether the part’s functionality requires precision or if standard fabrication tolerances are acceptable.
A practical approach in fabrication engineering is to define tolerances only on functional dimensions, such as:
- Mounting hole patterns
- Mating surfaces
- Critical alignment features
- Interfaces with purchased components
Designing With Manufacturing in Mind
Designing components without considering how they will be manufactured can create significant engineering challenges.
Designing for manufacturability is particularly important in metal fabrication, where geometry must often accommodate multiple processes such as cutting, forming, and welding.
Examples of common design issues include:
- Hole sizes smaller than material thickness in laser-cut parts
- Bend radii that exceed tooling capabilities
- Features located too close to bends or edges
- Complex shapes that require multiple secondary operations
Designing with manufacturing in mind allows fabrication engineers to reduce secondary operations, improve structural integrity, minimize distortion and optimize material usage. This approach is especially important in large fabricated assemblies where structural components, brackets, and enclosures must align precisely during final assembly.
Supplying All Required Standards and Documentation
For many fabrication projects, especially those serving defense, energy, and medical industries, manufacturing requirements extend a bit further. Engineering teams must also understand all applicable standards and compliance requirements before production begins. These may include:
- Regulatory or security standards such as ITAR or CMMC
- Electrical or safety certifications such as UL or NRTL
- Industry-specific inspection or documentation requirements like IP or NEMA
- Quality system or traceability standards like PPAP’s or MTR’s
If these requirements are not communicated at the start of a project, engineering teams may need to redesign documentation, inspection plans, or material sourcing processes later. Providing this information upfront ensures that fabrication engineering workflows are aligned with compliance requirements from the beginning.
Incomplete revision history can also lead to problems during engineering. Incorrect part numbers, outdated models and drawings or conflicting tolerances between documents can create confusion for engineering teams. Revision control is especially important in industries with long product lifecycles or multiple engineering teams.
Without clear revision tracking, engineers must spend time verifying which version of a design is correct before proceeding with production. In complex fabricated assemblies, even a small change like moving a hole pattern or modifying a bracket can affect multiple components. Providing complete documentation ensures that fabrication engineering teams can move directly into manufacturability review and production planning.
Set Yourself Up for Success
At its core, fabrication engineering exists to bridge the gap between design and manufacturing. Even when initial project information is complete, ongoing communication remains essential throughout the project’s lifecycle.
For customers developing complex fabricated assemblies, investing time in preparing complete engineering data is one of the most effective ways to ensure accurate project timelines.
The most successful metal fabrication projects begin with a well-prepared engineering package that includes:
- 2D drawings and 3D CAD models
- Clearly defined materials and finishes
- Realistic tolerances aligned with manufacturing processes
- All compliance and inspection standards
- Accurate revision history and documentation
When this information is provided upfront, fabrication engineering teams can focus on what they do best: optimizing designs for manufacturing.
